Thermal
Imaging Monocular EyeⅡ Series V3.0
EyeⅡSeries
V3 is a powerful, compact and cost-effective thermal imaging
monocular which adopts a 12μm 640*512 resolution thermal sensor
with sensorNETD≤25mK (@25°C,F#=1.0)and a high contrast HD OLED
display, within innovative improvement in thermal imaging quality and
multifunctional features, brings you great technical superiority and
experience in thermal imaging.
Better
Sensor, clearer imaging!
Pocket-Sized
Thermal Vision Monocular

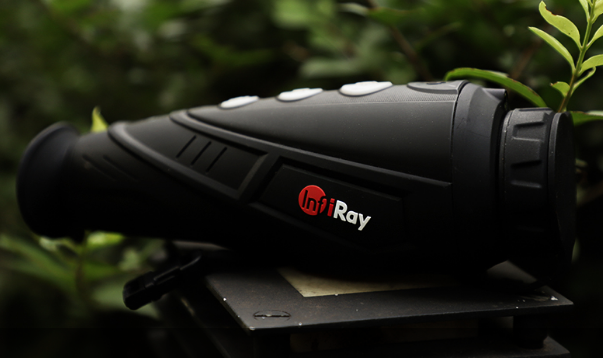

The
InfiRay EyeⅡV3 series is a pocket-sized thermal vision
monocular with≤500g for exploring the outdoors. It helps to reveal
your surroundings and see targets over 2000 meters away with ease.
Simple to use, low learning cost. EyeⅡV3 is the perfect
companion for thermal imaging hunting or outdoor journey, whether in
the darkness or in your own backyard.
12um
Thermal Sensor with NETD≤25mK (@25°C,F#=1.0)
The
V3 series is equipped with InfiRay high-performance ceramic
encapsulated 12um 640*512 high-resolution sensor featuring NETD≤25mk
(25℃, F#=1.0), which is lighter, lower power consumption,
ensures perfect detailed recognition even in the hardest weather
conditions when thermal contrast is low.
High
Image Quality
The
EyeⅡ V3 series allows you to receive technical superiority in
thermal imaging with rich details, it will be much simpler to search
for targets in the darkness. The EyeⅡseries has an excellent
performance in the temperature range.
Built-in
Ultra clear Mode
The
built-in Ultra-clear mode thermal technology of InfiRay is comprised
of software algorithms designed for inclement weather such as rainy,
snowy, foggy days, etc., to increase thermal imaging clarity and
overall details. The ultra-clear mode can result in a more detailed
field of view and enhanced object identification capabilities.
High
Contrast HD OLED Micro Display
Embedded
with a 1024*768 display resolution high contrast OLED display, the
EyeⅡ V3 series offers more color rendering and a higher
response rate and can output crisper images and more vivid colors on
the imaging.

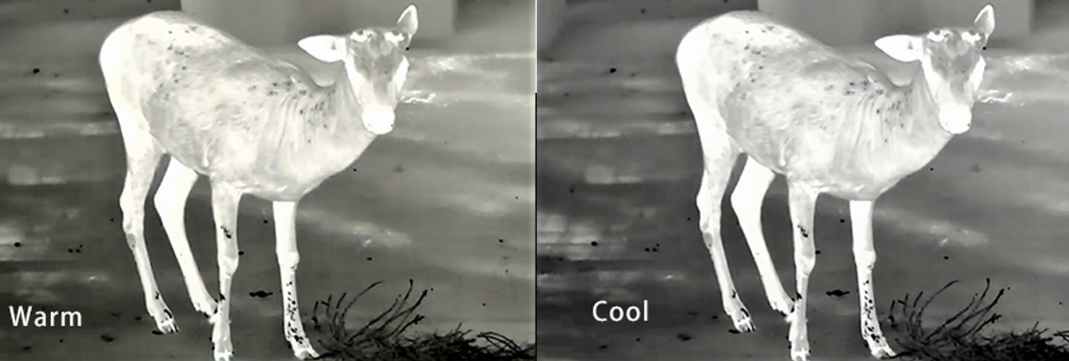

Hue
Selections
To
better meet the users’ different demands of visual experience,
the products supply two hue selections for users: C(cool) hue and
W(warm) hue.
Under
cool hue, users can experience visually clearer imaging quality with
rich details, and highlight targets.
Under
a warm hue, the users can get softer imaging avoiding visual fatigue
brought by long-time viewing.
Long
Detection Range up to 2597 meters
Combined
with the powerful objective lens (E6+V3: 35mm/F1.0 VS E6Pro V3:
50mm/F1.2) with a 640x480@12µm highly-sensitive thermal imaging
sensor, the EyeⅡ V3 series provides exceptional detecting
capabilities. Depending on the model, the V3.0 series is capable of
detecting an average human-size target, dressed in outerwear, at the
maximized range up to 2597m in complete darkness.
PIP
Functions
The
Built-in Picture-in-Picture function of EyeⅡ V3 improves
accuracy by providing a 2x magnified image of the reticle area at the
top of the display. It helps users to zoom in on the targets while
retaining the rest of the field of view visible.
5
Practical Color Palettes
5
color palettes are provided, besides normal “white hot”,
“black hot”, “red hot” and “color”,
we have developed a “hot target highlight” palette. Under
this palette, users can find the target easily through the high
contrast between the background and the target. Track the hottest
spot in the scene automatically and discover the target quickly.
Built-in
Video Recorder and WiFi Connection
The
monocular has 32 GB built-in memory to store the captured still
images and video recording and a Wi-Fi module that allows 4
connecting devices simultaneously.
Technical
Specifications
E6+
V3
E6Pro
V3
E3Max
V3
